Description

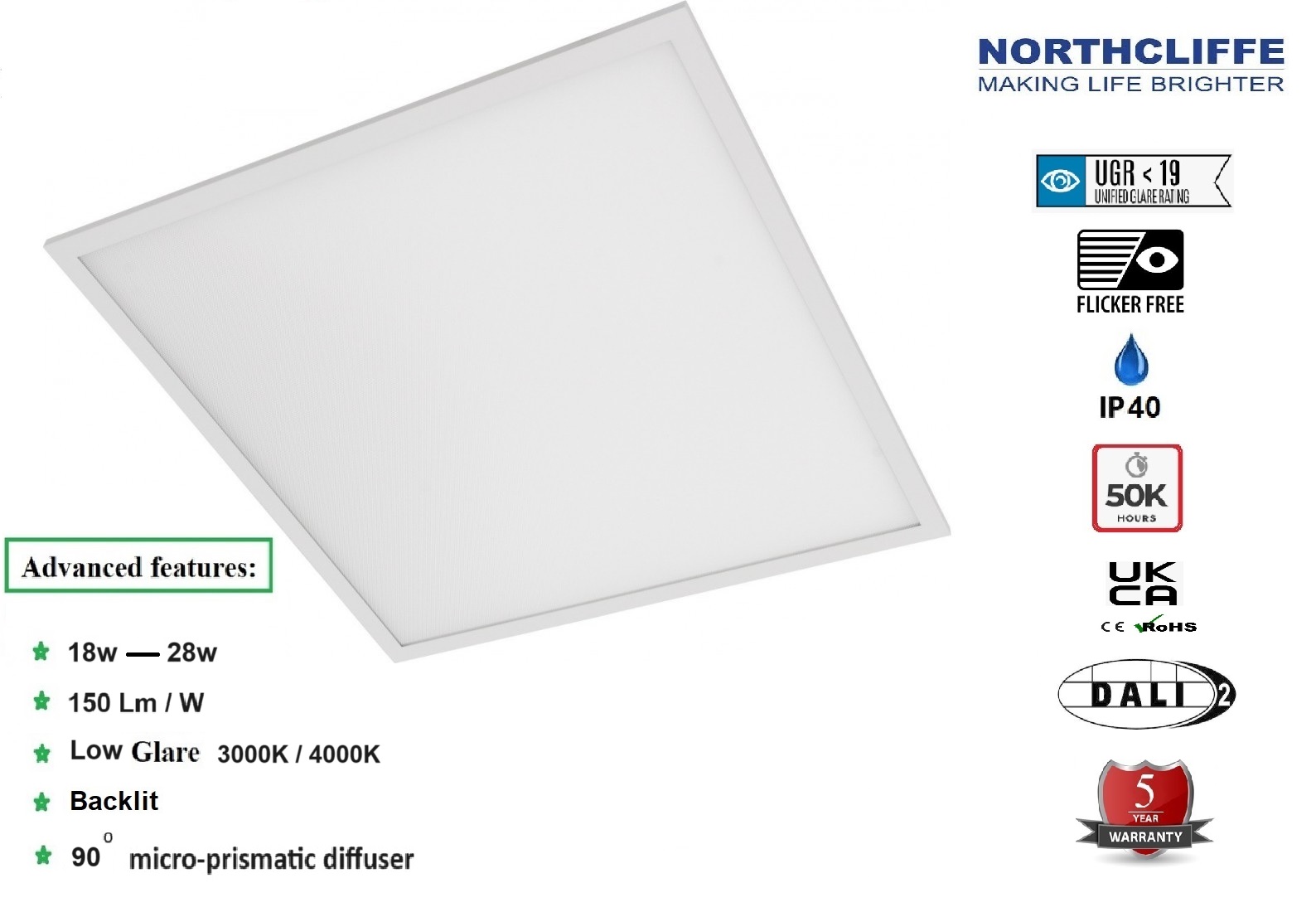

Market Leading Low Wattage High 150 Lumin per watt LED Backlit Panels are a replacement for 60×60 Suspended Ceiling Mounted Fluorescents and Failing LEDs. They give a better low glare defused light, they last longer than thin side lit LED Panels. “Kind Eye Technology” Low Glare combined with Flicker Free, also means less reflection on your computer screens, desks etc.
- 18-28W 230vac Backlit LED Technology, – Ajustable
- UGR -19 low glare free, flicker free, very homogeneous light distribution Diffuser
- 2750-4180 lm (ta=25°C)
- CRI (Ra): 80+, Micro-prismatic diffuser, UGR≤19
- white finish 595x595x33mm, 1.8Kg
- 4000 K LED
- lifetime: 50,000 hours
- Ingress protection code: IP44
Note: Minimum Order Case of 6 Units

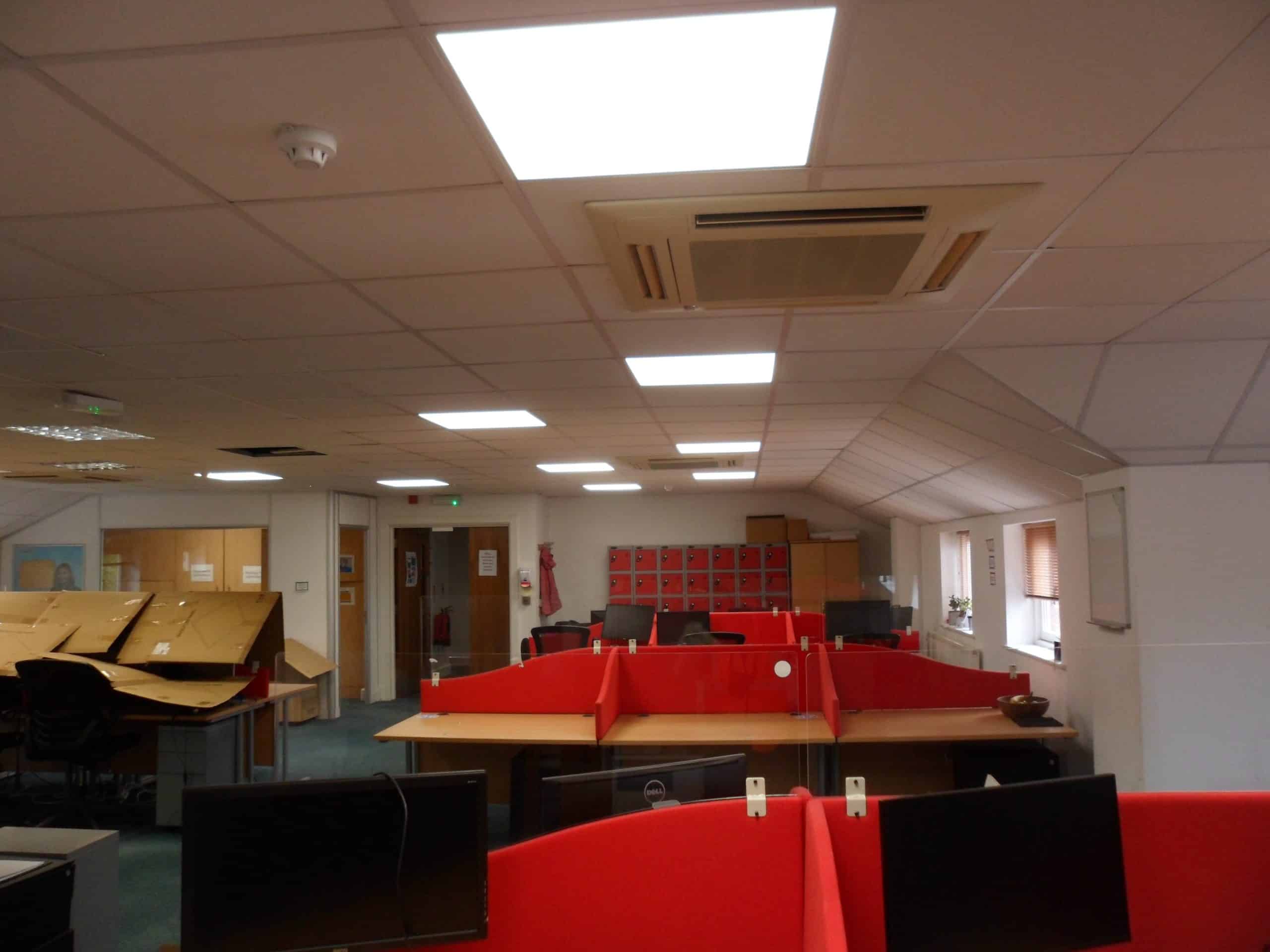

![](https://www.ledlights4you.co.uk/wp-content/uploads/2020/06/SAM_5528-FF-Office-to-the-kitchen-250x188.jpg)
Specification
Mains voltage: 220-240V, 50-60Hz
Power factor: >0,90 Light source:
LED Light source included: Yes Light distribution type:
Direct LED lifetime, h: 50000/L70B50 Operating temperature range, °C: ta 0…+35
Protection class IEC: II Ingress protection code: IP40 (IP44 optional)
Mechanical impact resistance: IK02 EEC: A+
Installation: Fits 15-24mm exposed T-Bar ceiling 600x600mm. When the luminaire is fitted into a plasterboard ceiling, it is recommended to use recessed mounting kit (to be ordered separately).
Cable, 0.1m, 2×0.75mm2 Environment: Indoor Application: Office, education, corridor, retail, public place
Product
Length, 595 mm
Width, 595 mm
Height , 33mm
Luminaire: LED
Available options:
OP DALI Driver with DALI interface and switch-control dimming
DALI LOOP Driver with DALI interface, switch-control dimming and doubled input terminals for looping the mains cables EM3B
Emergency version 3 hours (best available technology) EM3A Emergency version equipped with an autonomous testing system, 3 hours EM3D
Emergency version 3 hours with DALI interface WIE3-0.5m 3-pole “Wieland- Gesis classic” type or compatible connector with 0.5m cable WIE5D-0.5m 5-pole
DALI “Wieland- Gesis classic” type or compatible connector with 0.5m cable Europlug-1.5m 2-pole “Europlug” type plug with 1.5m cable Europlug-3.0m 2-pole “Europlug” type plug with 3.0m cable QBX3-0.1m 3-pole quick connection box on 0.1m cable,
Push-in terminal, 3x2x2.5mm2 IP44 IP44 protection degree T830 Colour temperature 3000K, CRI 80+ T840 Colour temperature 4000K, CRI 80+
Warranty: 5 years with approval from the manufacturer (3 years standard)
